Budgeted Express-Mesh: Traffic-Aware Link Placement and Deadlock-Free Adaptive Routing · Research brief

Request deep report Read original paper ↗View page data (JSON)Download research skill ↓Discuss this paper

For solo builders

A possible application for this research area. Paper-specific feasibility still needs a full-paper review.

Start with one repeated product task that has a measurable failure or cost.

What you would change

Read the methods and identify one change you can isolate in that workflow.

Try the idea on your product

A proposed first test. Set your budget and success criteria before running it.

Read the methods and identify one change you can isolate in that workflow.

Compare against

Your current implementation on the same held-out tasks.

Locate the paper's implementation and check its license, model support, data needs, and hardware requirements. Stop here if you cannot obtain the required artifacts.
Save a small set of representative product tasks and expected outcomes. Keep evaluation tasks out of any training or tuning, and choose quality and cost limits before running.
Run the baseline and the proposed change on identical inputs. Keep other settings fixed and repeat paired runs to expose variation.
Save per-task outputs, failures, timings, and all usage costs. Review regressions before expanding the test.

What to measure

Successful outcomes, response time, human rework, and total cost per successful task.

When to keep it

Keep the change only if it meets your preselected quality and latency limits and improves the metric you care about after setup and operating costs. Otherwise retain the baseline. This is an exploration plan, not a validated recommendation.

Download test plan ↓

abstract indexedPaperraft next step

Do not allocate compute yet.

This page uses the abstract and public adoption signal only. Request the deep report before relying on its recommendation.

Abstract-level screening only. Risks and infrastructure may not have been evaluated. This recommendation is not a reproduced result.

minimum test setup: not reported
published evidence setup: not reported
source-linked claims: 0 of 1
exposure checks: 0 of 8

Why it was shortlisted

The technical change, research area, and reason it entered the archive.

recommendation: not applicable
research area: other
technical change: Traffic-aware express-link placement with adaptive NoC routing
published: 2026-09-15

The technique targets hardware NoC design, not any layer of the ML software or serving stack the reader operates.

Central equations

Original equations, typeset for reading. Paperraft explanations connect the mechanism, its aim, and the evidence.

Let $D_{s t}$ be the known or estimated communication demand, normalized over ordered source–destination pairs. We aim to minimize traffic-weighted average shortest-path latency

A (G, D) = \sum_{s \neq t} D_{s ​ t} ​ d_{G} ​ (s, t) .

equation (2) · §2 Architecture · baseline

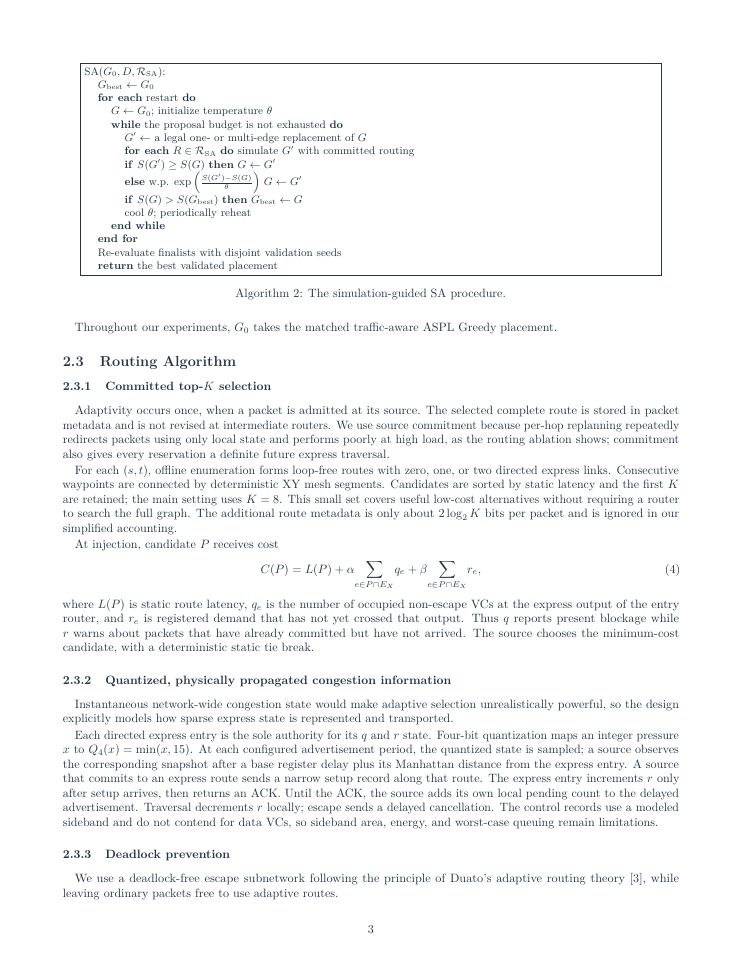

At injection, candidate $P$ receives cost

C (P) = L (P) + α ​ \sum_{e \in P \cap E_{X}} q_{e} + β ​ \sum_{e \in P \cap E_{X}} r_{e},

equation (4) · §2 Architecture · proposed method

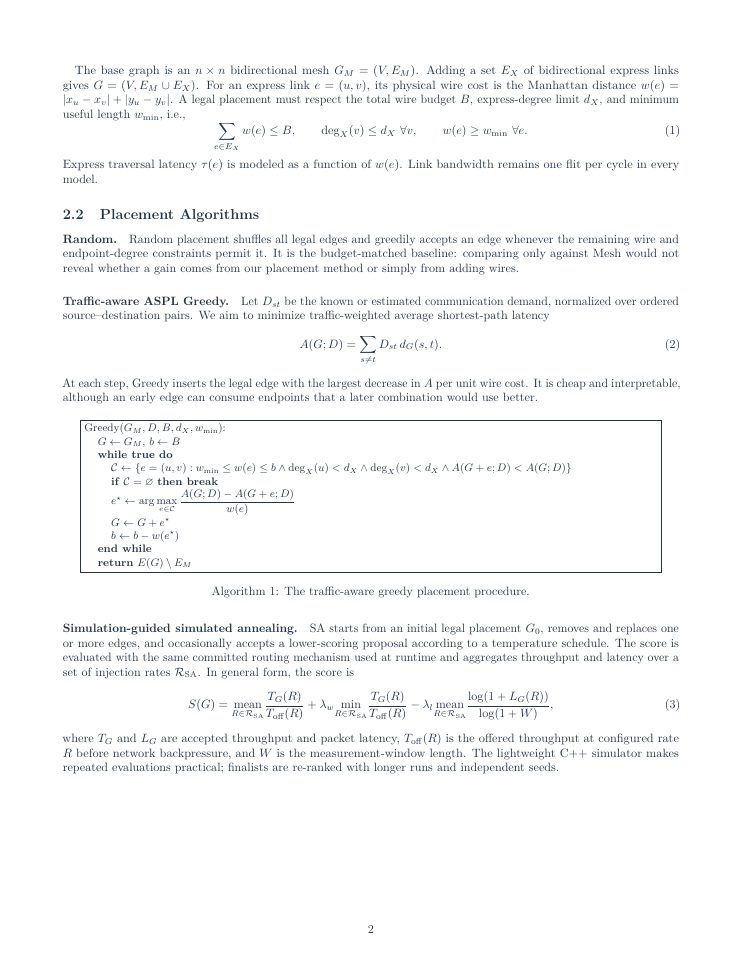

SA starts from an initial legal placement $G_{0}$ , removes and replaces one or more edges, and occasionally accepts a lower-scoring proposal according to a temperature schedule. The score is evaluated with the same committed routing mechanism used at runtime and aggregates throughput and latency over a set of injection rates $ℛ_{SA}$ . In general form, the score is

S (G) = \underset{R \in ℛ_{SA}}{mean} ​ \frac{T_{G} ​ (R)}{T_{off} ​ (R)} + λ_{w} ​ \min_{R \in ℛ_{SA}} ​ \frac{T_{G} ​ (R)}{T_{off} ​ (R)} - λ_{l} ​ \underset{R \in ℛ_{SA}}{mean} ​ \frac{\log (1 + L_{G} ​ (R))}{\log (1 + W)},

equation (3) · §2 Architecture · metric

equations from arXiv HTML · fetched 2026-10-17

Claims and evidence

A claim is source-linked only when the PDF page and matching excerpt are available.

claim 01Paperraft inference
Read the brief interpretation
This is a network-on-chip topology-routing co-design that replaces a standard mesh interconnect with a mesh augmented by a few traffic-aware express links placed under a fixed wire budget, using greedy placement refined by simulated annealing and committed top-K adaptive routing. It costs wire-budget allocation, placement optimization compute, and routing logic complexity, all at chip-design level. It can fail when traffic patterns deviate from those used to guide link placement, and it is entirely irrelevant to ML inference or training on a single 24 GB GPU or API-based stack.
This is a Paperraft inference. It is not pinned to a verified PDF passage.
Inspect the source

Exposure map

Author findings, Paperraft interpretations, and the next check. Missing analysis never counts as evidence of safety.

quality

Still unknown

Which tasks improve, and which regress against the baseline?

compute and memory

Still unknown

What memory, hardware, and total compute does the complete method require?

latency

Still unknown

Are startup time, typical response time, and slow requests measured separately?

operations

Still unknown

What must be monitored, maintained, and rolled back?

software compatibility

Still unknown

Does the implementation support your model, runtime, and hardware?

security

Still unknown

What new data access, permissions, or trust boundaries does it introduce?

data and training

Still unknown

What data preparation or training is required, and is it included in the cost?

reproducibility

Still unknown

Are code, versions, inputs, and evaluation scripts available?

Continue the investigation

Questions to guide your next reading.

Editorial prompts, not findings from this paper or a validated test plan. Detailed analysis is still pending for the topics below.

What to inspect

Which assumptions does the proposed method need, and where might your workload violate them?

Plan a fair comparison

Identify the baseline, metric, dataset, and experimental settings in the paper. Which can you match?

Questions for adoption

What implementation and evaluation artifacts are available, and what would you need to supply?

Read the paper with these questions

Inside the paper

Preview the first 3 pages of the original PDF. Click the stack to turn the page.

The downloadable skill includes SKILL.md and evidence.json, with recorded findings and unanswered checks. TRY-IT.md adds a product test plan and a blank results sheet.

A reading aid for your agent. Findings still need validation.

Page 1 of 3

Open this page in the PDF ↗

Provisional research brief updated 2026-10-18. Paperraft has not reproduced this experiment.
