abstract indexed · arXiv 2609.29727 · updated 2026-10-18

VQ-LIC: Shared Vector-Quantized Learned Image Compression on a Resource-Constrained FPGA

First page of VQ-LIC: Shared Vector-Quantized Learned Image Compression on a Resource-Constrained FPGA
From the original paper · arXiv 2609.29727Page 1. Select the image to read the PDF.

VQ-LIC replaces a conventional learned image compression encoder and separate VQ compute array with an asymmetric edge-cloud codec: a compact INT8 depthwise-pointwise analysis transform plus multi-codebook VQ on the FPGA edge, sharing one reusable DW/PW engine pair, with reconstruction offloaded to a large cloud decoder. The cost is infrastructure mismatch for this reader: it requires FPGA deployment with custom RTL, an edge-cloud split architecture, and accepts a modest PSNR tradeoff (28.69 dB at 0.1398 bpp) relative to larger codecs. It can fail if the target deployment lacks an FPGA edge device or a cloud decoder endpoint, if the RTL latency model does not transfer to other silicon, and if the PSNR degradation is unacceptable for the application's quality requirements.

For solo builders

A possible application for this research area. Paper-specific feasibility still needs a full-paper review.

Start with one repeated product task that has a measurable failure or cost.

What you would change

Read the methods and identify one change you can isolate in that workflow.

Try the idea on your product

A proposed first test. Set your budget and success criteria before running it.

Read the methods and identify one change you can isolate in that workflow.

Compare against

Your current implementation on the same held-out tasks.

  1. Locate the paper's implementation and check its license, model support, data needs, and hardware requirements. Stop here if you cannot obtain the required artifacts.
  2. Save a small set of representative product tasks and expected outcomes. Keep evaluation tasks out of any training or tuning, and choose quality and cost limits before running.
  3. Run the baseline and the proposed change on identical inputs. Keep other settings fixed and repeat paired runs to expose variation.
  4. Save per-task outputs, failures, timings, and all usage costs. Review regressions before expanding the test.

What to measure

Successful outcomes, response time, human rework, and total cost per successful task.

When to keep it

Keep the change only if it meets your preselected quality and latency limits and improves the metric you care about after setup and operating costs. Otherwise retain the baseline. This is an exploration plan, not a validated recommendation.

Download test plan ↓

abstract indexedPaperraft next step

Do not allocate compute yet.

This page uses the abstract and public adoption signal only. Request the deep report before relying on its recommendation.

Abstract-level screening only. Risks and infrastructure may not have been evaluated. This recommendation is not a reproduced result.
minimum test setup
not reported
published evidence setup
not reported
source-linked claims
0 of 2
exposure checks
0 of 8

Why it was shortlisted

The technical change, research area, and reason it entered the archive.

recommendation
not applicable
research area
other
technical change
FPGA vector-quantized learned image codec
published
2026-09-24

The technique is an FPGA hardware codec for image compression, which is outside the reader's GPU/API-based ML production scope and offers no adoptable component for their stack.

About the technical core

Equations have not been fetched yet.

When reading the methods, identify the rule, algorithm, or evaluation protocol that produces the claimed change. An equation is useful here only if it explains that mechanism.

Inspect the original paper

Claims and evidence

A claim is source-linked only when the PDF page and matching excerpt are available.

  1. claim 01Paperraft inference
    Read the brief interpretation

    VQ-LIC replaces a conventional learned image compression encoder and separate VQ compute array with an asymmetric edge-cloud codec: a compact INT8 depthwise-pointwise analysis transform plus multi-codebook VQ on the FPGA edge, sharing one reusable DW/PW engine pair, with reconstruction offloaded to a large cloud decoder. The cost is infrastructure mismatch for this reader: it requires FPGA deployment with custom RTL, an edge-cloud split architecture, and accepts a modest PSNR tradeoff (28.69 dB at 0.1398 bpp) relative to larger codecs. It can fail if the target deployment lacks an FPGA edge device or a cloud decoder endpoint, if the RTL latency model does not transfer to other silicon, and if the PSNR degradation is unacceptable for the application's quality requirements.

    This is a Paperraft inference. It is not pinned to a verified PDF passage.

    Inspect the source
  2. claim 02Paperraft inference

    Uses an order of magnitude fewer DSPs than comparable FPGA LIC accelerators; post-training codebook reduction cuts VQ arithmetic and codebook storage by 4x; full pipeline runs at 47.98 fps and 42.84 mJ per frame on a Zynq-7020.

    This is a Paperraft inference. It is not pinned to a verified PDF passage.

    Inspect the source

Exposure map

Author findings, Paperraft interpretations, and the next check. Missing analysis never counts as evidence of safety.

quality

Still unknown

Which tasks improve, and which regress against the baseline?

compute and memory

Still unknown

What memory, hardware, and total compute does the complete method require?

latency

Still unknown

Are startup time, typical response time, and slow requests measured separately?

operations

Still unknown

What must be monitored, maintained, and rolled back?

software compatibility

Still unknown

Does the implementation support your model, runtime, and hardware?

security

Still unknown

What new data access, permissions, or trust boundaries does it introduce?

data and training

Still unknown

What data preparation or training is required, and is it included in the cost?

reproducibility

Still unknown

Are code, versions, inputs, and evaluation scripts available?

Continue the investigation

Questions to guide your next reading.

Editorial prompts, not findings from this paper or a validated test plan. Detailed analysis is still pending for the topics below.

What to inspect

Which assumptions does the proposed method need, and where might your workload violate them?

Plan a fair comparison

Identify the baseline, metric, dataset, and experimental settings in the paper. Which can you match?

Questions for adoption

What implementation and evaluation artifacts are available, and what would you need to supply?

Read the paper with these questions

Inside the paper

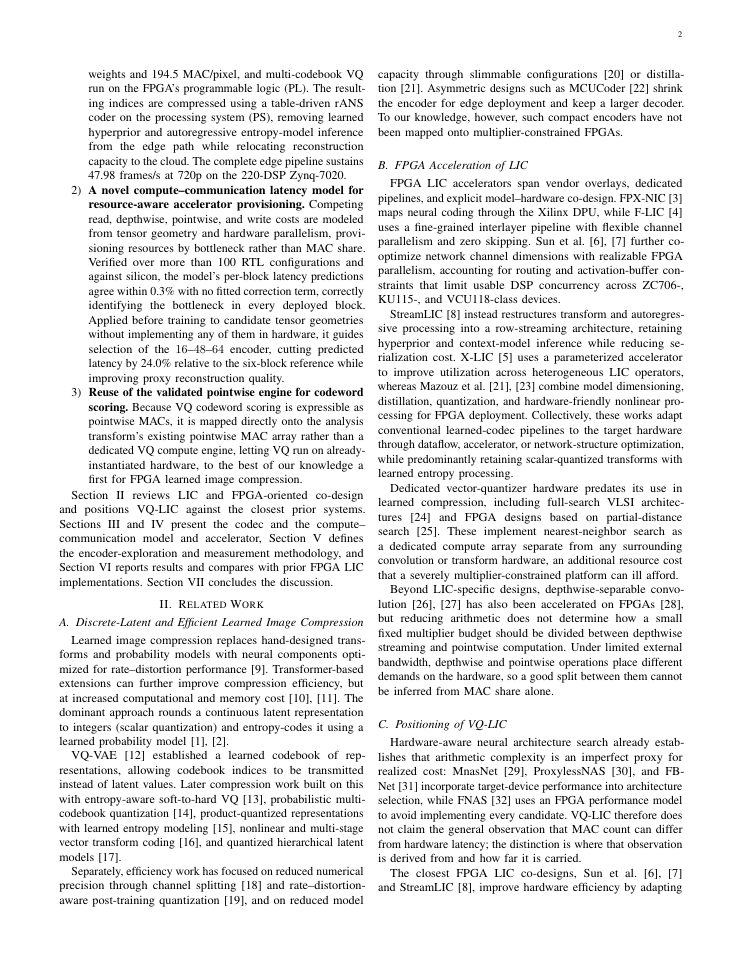

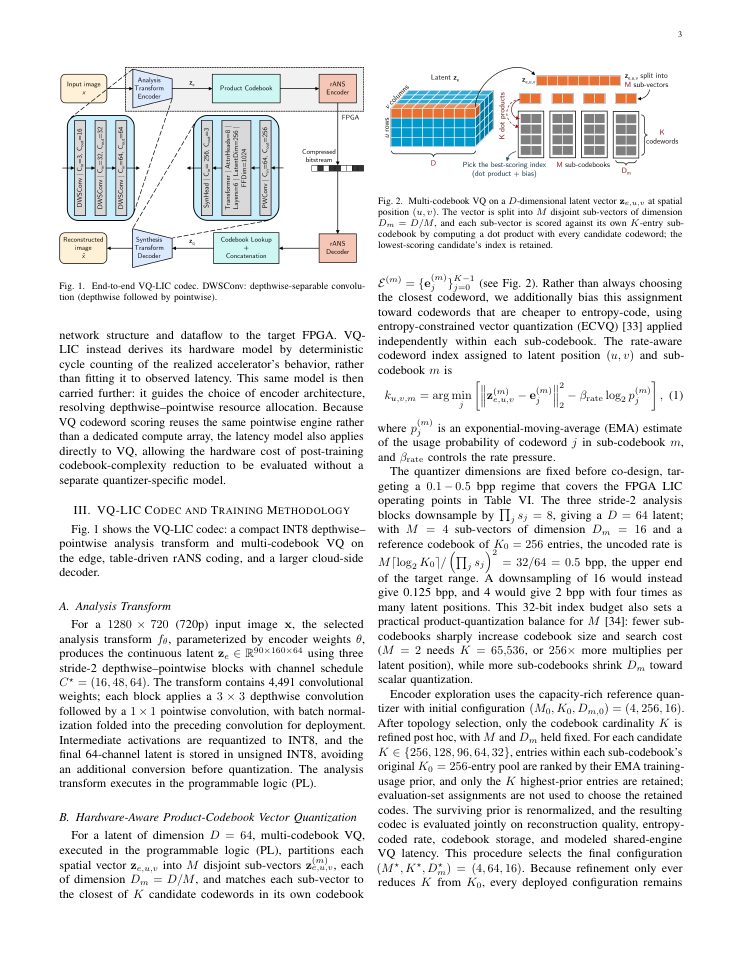

Preview the first 3 pages of the original PDF. Click the stack to turn the page.

The downloadable skill includes SKILL.md and evidence.json, with recorded findings and unanswered checks. TRY-IT.md adds a product test plan and a blank results sheet.

A reading aid for your agent. Findings still need validation.

Page 1 of 3
Open this page in the PDF ↗

Provisional research brief updated 2026-10-18. Paperraft has not reproduced this experiment.
