CFD Correction of Open Tip Clearance Flow in a Compressor Cascade Using VAE Latent Space Adaptation

First page of CFD Correction of Open Tip Clearance Flow in a Compressor Cascade Using VAE Latent Space Adaptation
From the original paper · arXiv 2609.28558Page 1. Select the image to read the PDF.

The method replaces modifying the RANS solver or constructing artificial high-resolution experimental labels by freezing a VAE trained on 166 CFD loss fields and fitting only a low-rank latent adapter from 12 paired CFD-experiment conditions via an observation operator. Cost is moderate: one VAE training pass plus a small adapter fit, all feasible on a single GPU, but it requires an existing parametric CFD dataset and paired sparse measurements. It can fail outside the sampled parameter space, the 12-fold cross-validation on 12 conditions is weak evidence of generalization, and correctness is only enforced at sparse measurement windows, so unobserved field regions may remain physically wrong.

For solo builders

A possible application for this research area. Paper-specific feasibility still needs a full-paper review.

Start with one repeated product task that has a measurable failure or cost.

What you would change

Read the methods and identify one change you can isolate in that workflow.

Try the idea on your product

A proposed first test. Set your budget and success criteria before running it.

Read the methods and identify one change you can isolate in that workflow.

Compare against

Your current implementation on the same held-out tasks.

  1. Locate the paper's implementation and check its license, model support, data needs, and hardware requirements. Stop here if you cannot obtain the required artifacts.
  2. Save a small set of representative product tasks and expected outcomes. Keep evaluation tasks out of any training or tuning, and choose quality and cost limits before running.
  3. Run the baseline and the proposed change on identical inputs. Keep other settings fixed and repeat paired runs to expose variation.
  4. Save per-task outputs, failures, timings, and all usage costs. Review regressions before expanding the test.

What to measure

Successful outcomes, response time, human rework, and total cost per successful task.

When to keep it

Keep the change only if it meets your preselected quality and latency limits and improves the metric you care about after setup and operating costs. Otherwise retain the baseline. This is an exploration plan, not a validated recommendation.

Download test plan ↓

abstract indexedPaperraft next step

Do not allocate compute yet.

This page uses the abstract and public adoption signal only. Request the deep report before relying on its recommendation.

Abstract-level screening only. Risks and infrastructure may not have been evaluated. This recommendation is not a reproduced result.
minimum test setup
not reported
published evidence setup
not reported
source-linked claims
0 of 2
exposure checks
0 of 8

Why it was shortlisted

The technical change, research area, and reason it entered the archive.

recommendation
not applicable
research area
other
technical change
VAE latent-space adaptation for CFD field correction
published
2026-09-23

This is a scientific-computing surrogate correction method for compressor aerodynamics, not an LLM inference, training, or agent technique, so it falls outside the reader's production adoption scope despite being computationally inexpensive.

About the technical core

Equations have not been fetched yet.

When reading the methods, identify the rule, algorithm, or evaluation protocol that produces the claimed change. An equation is useful here only if it explains that mechanism.

Inspect the original paper

Claims and evidence

A claim is source-linked only when the PDF page and matching excerpt are available.

  1. claim 01Paperraft inference
    Read the brief interpretation

    The method replaces modifying the RANS solver or constructing artificial high-resolution experimental labels by freezing a VAE trained on 166 CFD loss fields and fitting only a low-rank latent adapter from 12 paired CFD-experiment conditions via an observation operator. Cost is moderate: one VAE training pass plus a small adapter fit, all feasible on a single GPU, but it requires an existing parametric CFD dataset and paired sparse measurements. It can fail outside the sampled parameter space, the 12-fold cross-validation on 12 conditions is weak evidence of generalization, and correctness is only enforced at sparse measurement windows, so unobserved field regions may remain physically wrong.

    This is a Paperraft inference. It is not pinned to a verified PDF passage.

    Inspect the source
  2. claim 02Paperraft inference

    In 12-fold cross-validation, mean absolute error against experimental observations drops from 0.1335 to 0.0473 (about 2.8x), RMSE from 0.1717 to 0.0621, and relative L2 error from 0.5108 to 0.1871.

    This is a Paperraft inference. It is not pinned to a verified PDF passage.

    Inspect the source

Exposure map

Author findings, Paperraft interpretations, and the next check. Missing analysis never counts as evidence of safety.

quality

Still unknown

Which tasks improve, and which regress against the baseline?

compute and memory

Still unknown

What memory, hardware, and total compute does the complete method require?

latency

Still unknown

Are startup time, typical response time, and slow requests measured separately?

operations

Still unknown

What must be monitored, maintained, and rolled back?

software compatibility

Still unknown

Does the implementation support your model, runtime, and hardware?

security

Still unknown

What new data access, permissions, or trust boundaries does it introduce?

data and training

Still unknown

What data preparation or training is required, and is it included in the cost?

reproducibility

Still unknown

Are code, versions, inputs, and evaluation scripts available?

Continue the investigation

Questions to guide your next reading.

Editorial prompts, not findings from this paper or a validated test plan. Detailed analysis is still pending for the topics below.

What to inspect

Which assumptions does the proposed method need, and where might your workload violate them?

Plan a fair comparison

Identify the baseline, metric, dataset, and experimental settings in the paper. Which can you match?

Questions for adoption

What implementation and evaluation artifacts are available, and what would you need to supply?

Read the paper with these questions

Inside the paper

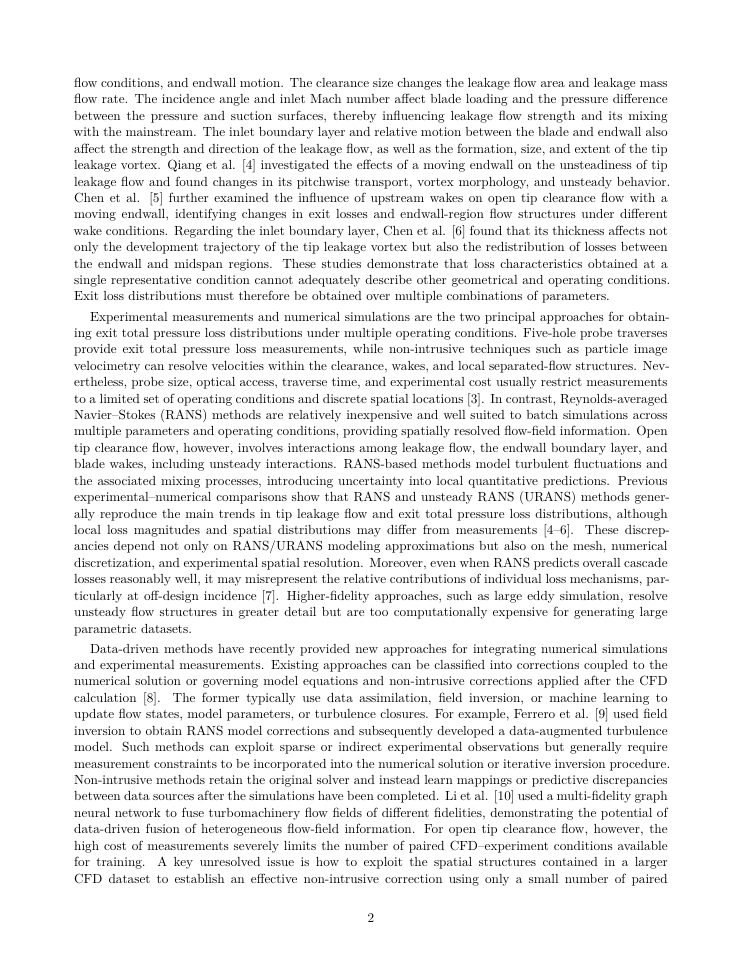

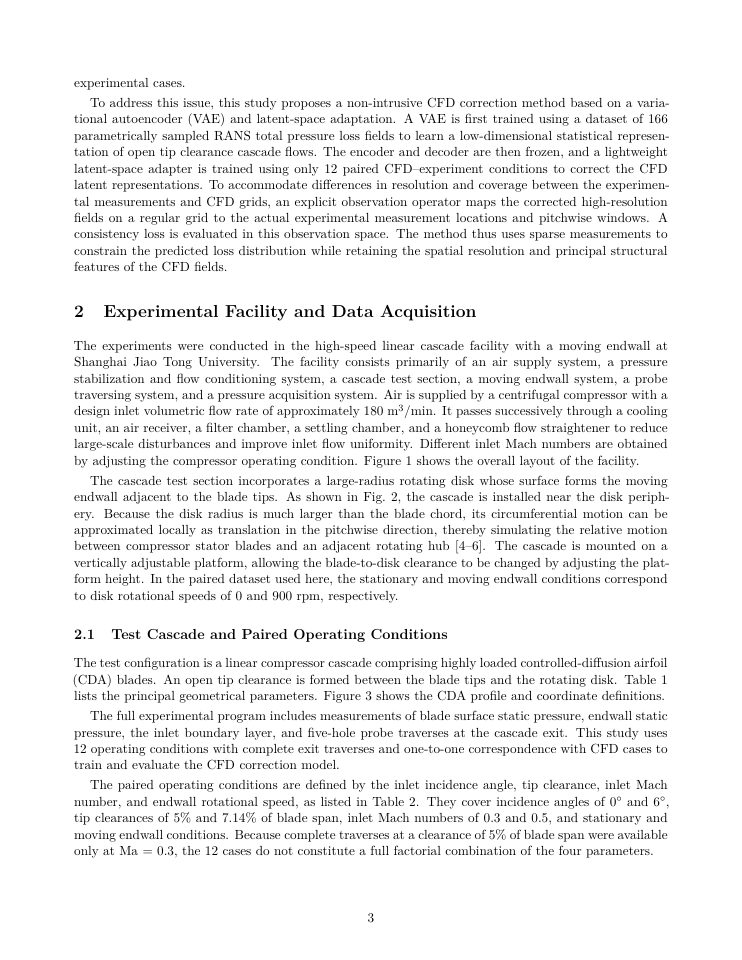

Preview the first 3 pages of the original PDF. Click the stack to turn the page.

The downloadable skill includes SKILL.md and evidence.json, with recorded findings and unanswered checks. TRY-IT.md adds a product test plan and a blank results sheet.

A reading aid for your agent. Findings still need validation.

Page 1 of 3
Open this page in the PDF ↗

Provisional research brief updated 2026-10-18. Paperraft has not reproduced this experiment.
